8x8 High Resolution Video Matrix Switcher with Stereo Audio, RS-232, RS-485

8x8 High Resolution Video Matrix Switcher with Stereo Audio, RS-232, RS-485 Review

8x8 High Resolution Video Matrix Switcher with Stereo Audio, RS-232, RS-485 Feature

• Made with the Best Quality Material with your child in mind.
• Top Quality Children's Item.

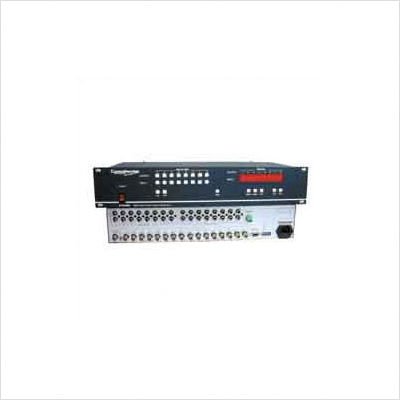

CVG-808XL The Comprehensive CVG-808XL is a high resolution, 200 MHz bandwidth, 8x8 video/stereo audio matrix switcher. The CVG-808XL provides vertical interval, glitch free switching when used with genlocked sources. The CVG-808XL can switch stereo audio in audio-follow-video mode or separately )breakaway). The CVG-808XL has manual, RS-232 and RS-485 controls, and may be simultaneously controlled in all modes. The unit has non-volatile memory built-in and it ''remembers'' the last setting. Several pre-sets may also be stored in the machine for quick retrieval. The CVG-808XL has a TAKE control button, and when it is activated, you may preset the machine and switch all crosspoints by one touch of this button. The unit has an external Sync/Genlock input as well and may be programmed to use this input or source number one. Windows software is included. This unit is covered under a 3 year warranty. Features: -8x8 matrix switching -200 MHz bandwidth -Stereo audio follow video or breakaway audio -Programmable memory -Looping inputs -Vertical interval seamless switching -Front panel LED display -RS-232 and RS-485 -Rackmountable -CE approved -3 year warranty Specifications: Inputs -8 composite video, 1Vpp/75 ohm on BNCs. 1 sync/video genlock 1Vpp/75 ohm with sync select switch. 8 audio stereo, +4dBm/33K ohm on RCAs Outputs -8 composite video, 1Vpp/75 ohm on BNCs. 8 audio stereo, +4dBm/50ohm (24 Vpp max.) on RCAs -Video bandwidth: Exceeding 200 MHz -Audio bandwidth: Exceeding 100 kHz -Video crosstalk: <50dB @ 5 MHz -Non linearity: <0.1pct -Video S/N: 74 dB -Audio S/N: 88 dB unweighted, (1Vpp) -Control: Manual, RS-232 or RS-485 -Diff. gain: 0.05pct -Audio THD: 0.016pct (1V, 1kHz) -Diff. phase: 0.03 Deg -Switching: Vertical interval -K-Factor: <0.05pct -Dimensions: 2U(H) x 19''W x 7''D, rack mountable -Power source: 115VAC, U.S.A., 11 VA -Weight: 7.8 lbs approx. -Warranty: 3 years Comprehensive offers a lifetime warranty on all products
