New Knoll Systems Micro Infrared Receiver - White Cfl Proof Plasma Friendly Normal 3-Wire Mode

New Knoll Systems Micro Infrared Receiver - White Cfl Proof Plasma Friendly Normal 3-Wire Mode Review

New Knoll Systems Micro Infrared Receiver - White Cfl Proof Plasma Friendly Normal 3-Wire Mode Feature

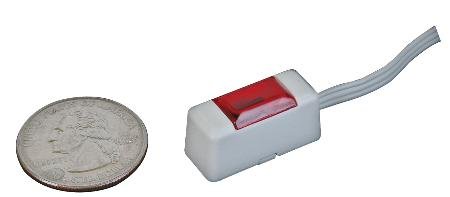

• Micro Infrared Receiver - White.
• Extremely small package, 15/16" x 3/8" x 1/2" h (24 mm x 95 mm x 13 mm h).
• Works in normal 3-wire mode.
• Talkback LED indicates infrared reception.
• Nominal reception angle: 50 degrees off axis.

CFL proof and plasma friendly. 30-60 kHz reception. 25-30 feet reception distance. Cable requirements for long lengths: three-conductor/24 gauge wire up to 200', 22 gauge up to 600', 20 gauge up to 2000' and 18 gauge up to 5000' (unshielded OK). Maximum cable length: One mile with 18 gauge. Extremely compact micro receiver can be used virtually anywhere for a truly "stealthy" installation. Maximum current output: 100 milliamps. Maximum number of directly driven IR emitters: Up to four connected in series or up to four dual emitters when using Knoll IR54 or IR55 connection block. Power requirements: 12 volts DC 25 milliamps Requires PS1202 or PS1205 Power Supply. Receiver color: White.
